HMP-15kV 600A Deadbreak Junction

Get our Buyer's Guide

Our experts will break down everything you need to know so you can choose the right product for your business.

Product Details

HMP-15kV 600A Deadbreak Junction is compound of 200A loadbreak junction and 600A deadbreak junction. When mated with a comparably rated product, the junction provides a fully shielded, separable connection for loadbreak or deadbreak operation.

The 200A interface is connected with 200A loadbreak connectors and the 600A interface is connected with deadbreak connectors. It is available with an adjustable bracket for mounting at various operating angles on flat or cured surfaces. The body is molded of high quality EPDM.

Scope of Delivery

Loadbreak junctions

Coving cap

Installation Instruction Sheet

Quality Certificate

Inference Information

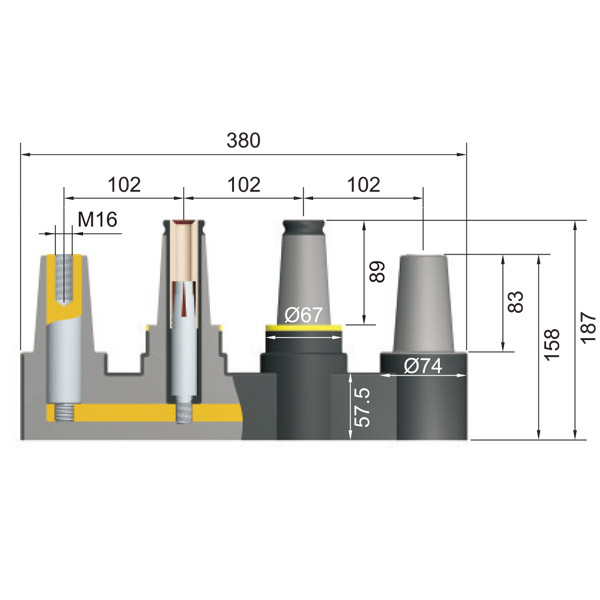

Product Structure

1.ARCING TUBE: Be made from special materials, Eliminate arc effectively when inserted operation.

2. INSERTED SEAT: Copper fittings arc fixed in copper conducting bar.

3. EPDM INSULATION:High-quality EPDM rubber formulated, mixed, and milled in-house for consistent and reliable field performance.

4. SEMI-CONDUCTIVE SHIELD: Molded Semi-conductive sulfur-cured EPDM shield meets requirements of IEEE Standard 592™.

5.LATCH INDICATOR RING: Molded-in bright yellow ring eliminates elbow installation guesswork by assuring a quality connection,

6. COPPER CONNECTING: The conductive row is made of copper, It can ensure current smooth and play good cooling effect.

Technical Parameters

Order Information

Reference No.	Continuous operating voltage
HMP4-15/600/1-200/3	15kV
HMP4-15/600/2-200/2	15kV
HMP4-15/600/3-200/1	15kV
