Heat Shrink Cable End Termination

Get our Buyer's Guide

Our experts will break down everything you need to know so you can choose the right product for your business.

Product Details

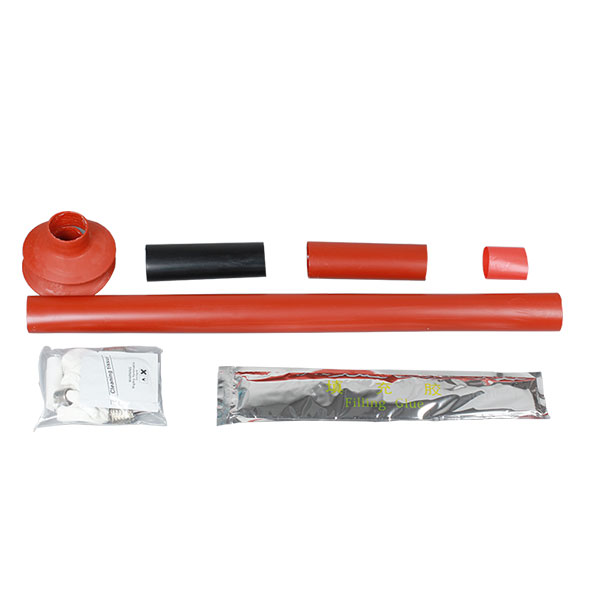

Heat Shrink Cable End Termination is a terminal processing device designed for power cable connection. The kit contains a series of high-quality heat shrink materials and accessories, which can provide reliable cable terminal closure and insulation protection. It has the characteristics of high temperature resistance, corrosion resistance and weather resistance, and can meet the use requirements of various harsh environmental conditions. Its excellent design and easy installation can ensure the stability and safety of cable terminals, and it is an indispensable key component in the power industry.

Radiation co-connection heat-shrinkable cable accessories are the newest products in the national cable accessories industry. These accessories are compact, lightweight, and offer reliable performance with strong adaptability. They are easy to install and come at a low price, making them an excellent choice for various applications.

These accessories are widely used for both indoor and outdoor direct and intermediate terminal connections of all kinds of power cables, including co-connection cables, plastic cables, and oil-immersed cables. Additionally, they can be used as connection accessories for communication cables and for insulated protection.

Applications:
Power supply in the power industry
Petroleum and chemical industries
Metallurgy and mining
Construction
Shipbuilding

Key Features:
Compact dimensions and lightweight design
Reliable performance with powerful adaptation
Easy installation
Low cost

These advantages make radiation co-connection heat-shrinkable cable accessories ideal for a wide range of industrial applications.

Technical Parameters

10kV The main technical data of the heat shrinkable power cable accessories

Test items

Standard requirements

Test result

1 min power frequency voltage test

45kV no flash and no breakdown

45kV,1 min,the respectively phase of the combination Sample has no flash and no breakdown

load circulation test

conductor heated to 90-95℃℃.8h of every circulation-5hheated and 3h cooled,total 3 circulations

Completes 3 load circulations conforming the standard requirements judge by the following tests

partial discharge test

the discharge is not above20pC when the voltage is below 13kV

phase	yellow	green	red
The discharge Acceptance	≤2	≤2	6

Impulse voltage test

105kV 10 times of the positive and the negative respectively,no flash and no breakdown

105kV 10 times of the positive and the negative respectively,the respectively phase of the combination sample has no flash and no breakdown

15min DC test of the negative pole

52kV no flash and no breakdown

52kV the respectively phase of the15min combination sample has no flash and no breakdown

4h power voltage test

35kV no flash and no breakdown

35kV the respectively phase of the 4h combination sample has no flash and no breakdown

Specification table of 1 kV co-connection heat shr-inkable cable accessories

Product name	Mode & specification	The applicable cable section
Three-core cable terminal	SY-1/3.0	10-16
	SY-1/3.1	25-50
	SY-1/3.2	70-120
	SY-1/3.3	150-240
Four-core cable terminal	SY-1/4.0	10-16
	SY-1/4.1	25-50
	SY-1/4.2	70-120
	SY-1/4.3	150-240
Five-core cable terminal	SY-1/5.0	10-16
	SY-1/5.1	25-50
	SY-1/5.2	70-120
	SY-1/5.3	150-240

Specification table of10kVone-core co-connection heat shrinkable cable accessories

Product name	Mode & specification	The applicable cable section
one-core indoor terminal	NSY-10/1.1	25-50
	NSY-10/1.2	70-120
	NSY-10/1.3	150-240
	NSY-10/1.4	300-500
one-core outdoor terminal	WSY-10/1.1	25-50
	WSY-10/1.2	70-120
	WSY-10/1.3	150-240
	WSY-10/1.4	300-500
one-core intermediate connector	JSY-10/1.1	25-50
	JSY-10/1.2	70-120
	JSY-10/1.3	150-240
	JSY-10/1.4	300-500

Specification table of 10kV three-core co-connection heat shr-inkable cable accessories

Product name	Mode & specification	The applicable cable section
Three-core indoor terminal	NSY-10/3.1	25-50
	NSY-10/3.2	70-120
	NSY-10/3.3	150-240
	NSY-10/3.4	300-500
Three-core outdoor terminal	WSY-10/3.1	25-50
	WSY-10/3.2	70-120
	WSY-10/3.3	150-240
	WSY-10/3.4	300-500
Three-core intermediate connector	JSY-10/3.1	25-50
	JSY-10/3.2	70-120
	JSY-10/3.3	150-240
	JSY-10/3.4	300-500

Specification table of 35kV one-core co-connection heat shr-inkable cable accessories

Product name	Mode & specification	The applicable cable section
one-core indoor terminal	NSY-35/1.1	50-120
	NSY-35/1.2	150-240
	NSY-35/1.3	300-500
one-core outdoor terminal	WSY-35/1.1	35-70
	WSY-35/1.2	95-185
	WSY-35/1.3	240-400
one-core Intermediate connector	JSY-35/1.1	35-70
	JSY-35/1.2	95-185
	JSY-35/1.3	240-400

Specification table of 35kV three-core co-connection heat shr-inkable cable accessories

Product name	Mode & specification	The applicable cable section
Three-core indoor terminal	NSY-35/3.1	50-120
	NSY-35/3.2	150-240
	NSY-35/3.3	300-500
Three-core outdoor terminal	WSY-35/3.1	50-120
	WSY-35/3.2	150-240
	WSY-35/3.3	300-500
Three-core intermediate connector	JSY-35/3.1	50-120
	JSY-35/3.2	150-240
	JSY-35/3.3	300-500
