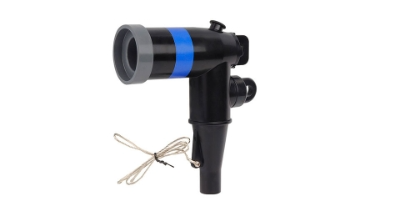

Separable Connector Installation Guide

Installing a separable connector correctly is crucial to ensure the reliable and safe operation of electrical connections. Follow these steps carefully to achieve a proper installation.

1. Preparation
a.Gather Tools and Materials: Before starting the installation, make sure you have all the necessary tools, such as screwdrivers, pliers, and a torque wrench if required. Also, have the appropriate separable connector and any associated accessories, like cable lugs or seals, on hand.
b.Inspect the Connector and Cables: Examine the separable connector for any signs of damage or defects. Check the cables as well to ensure they are of the correct size and in good condition. Any damaged components should be replaced before proceeding.

2. Cable Preparation
a.Strip the Cable: Measure and mark the appropriate length of cable insulation to be stripped. Use a cable stripper tool to carefully remove the outer insulation without damaging the inner conductors. The stripped length should match the requirements of the separable connector.
b.Clean and Prepare the Conductors: After stripping, clean the conductors thoroughly to remove any oxidation or debris. This can be done using a wire brush or an appropriate cleaning solution. Ensure that the conductors are smooth and free from any contaminants.

3. Connector Assembly
a.Insert the Conductors: Insert the prepared conductors into the appropriate terminals of the separable connector. Make sure each conductor is fully inserted and seated correctly. Some connectors may require crimping or tightening of terminals to secure the conductors in place. Follow the manufacturer's instructions for the specific connector type.
b.Install Any Seals or Gaskets: If the connector comes with seals or gaskets, install them properly to ensure a watertight and dustproof connection. These components help protect the internal electrical connections from environmental factors.

4. Connection and Tightening
a.Connect the Connector Halves: If the separable connector has two halves, carefully align and join them together. Ensure that the mating surfaces are clean and free from debris. Some connectors may have alignment features or locking mechanisms to assist in proper connection.
b.Tighten the Fasteners: Use the appropriate tools to tighten any bolts, screws, or other fasteners on the connector. Follow the recommended torque values provided by the manufacturer. Over-tightening can damage the connector, while under-tightening may result in a loose connection that can cause arcing or poor electrical performance.

5. Testing and Inspection
Visual Inspection: After installation, visually inspect the entire connection. Check for any signs of improper assembly, such as loose conductors, misaligned parts, or damaged seals. Ensure that the connector is properly seated and fastened.
Electrical Testing: Perform electrical tests, such as continuity and insulation resistance tests, to verify the integrity of the connection. These tests help ensure that there are no open circuits or short circuits and that the insulation is in good condition. Any abnormal test results should be investigated and corrected before energizing the circuit.

By following these installation steps and adhering to the manufacturer's guidelines, you can ensure a proper and reliable installation of a separable connector, promoting the safe and efficient operation of your electrical system. Regular inspection and maintenance of the installed connectors are also important to detect and address any potential issues over time.
