JDZX9-35 Indoor Voltage Transformer

Description and meaning of model

JDZX9-35 Indoor Voltage Transformer adopts advanced manufacturing technology and materials, with excellent insulation performance and measurement accuracy. It is suitable for power systems with a rated frequency of 50Hz and a rated voltage of 35kV, and is widely used in substations, power plants, switch cabinets and electric energy metering cabinets. The design of this product fully considers the user's needs and has the characteristics of compact structure, easy installation and reliable operation. It is mainly used for voltage measurement, metering and protection.

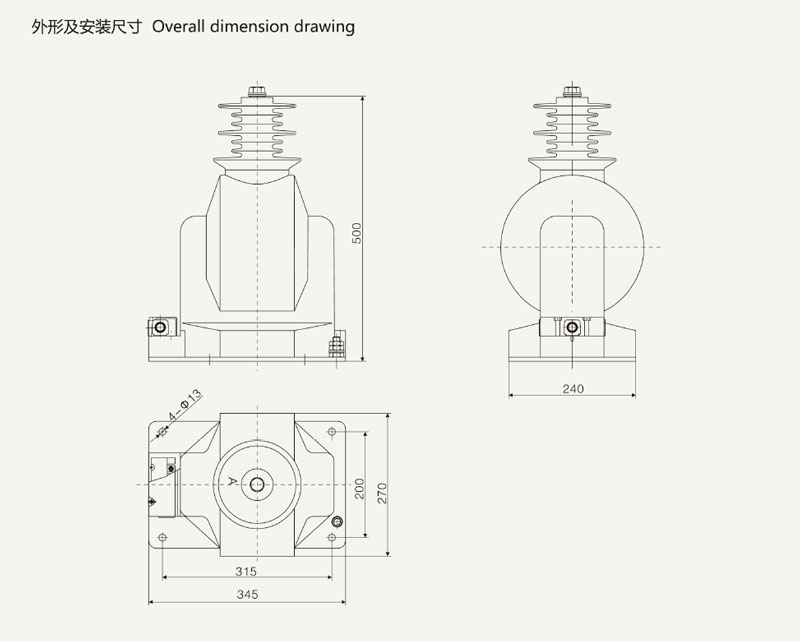

Characteristic of structure

This products is epoxy resin casted with totally-enclosed structure. Anti-pollution and moisture-proof, it is suitable for the tropic zone, no needing special maintenance, clear the dirt termly small size and light weight, it could be installed at any position and in any direction. There is terminal box beside the secondary outlet terminal, it could elicit the secondary connection at three directions, the connection is very convenient, and the box could resist the stealing of the power electricity.

Application scope

Power factor of load: COSΦ=0.8(lagging);

Rated frequency: 50 or 60Hz;

Anti-Pollution grade: Class ll;

Ambient temperature: -5 ℃ -40 ℃ ,daily average temperature not more than 30℃ ;

Altitude ≤ 2000m;

Standard: GB 1207-2006
